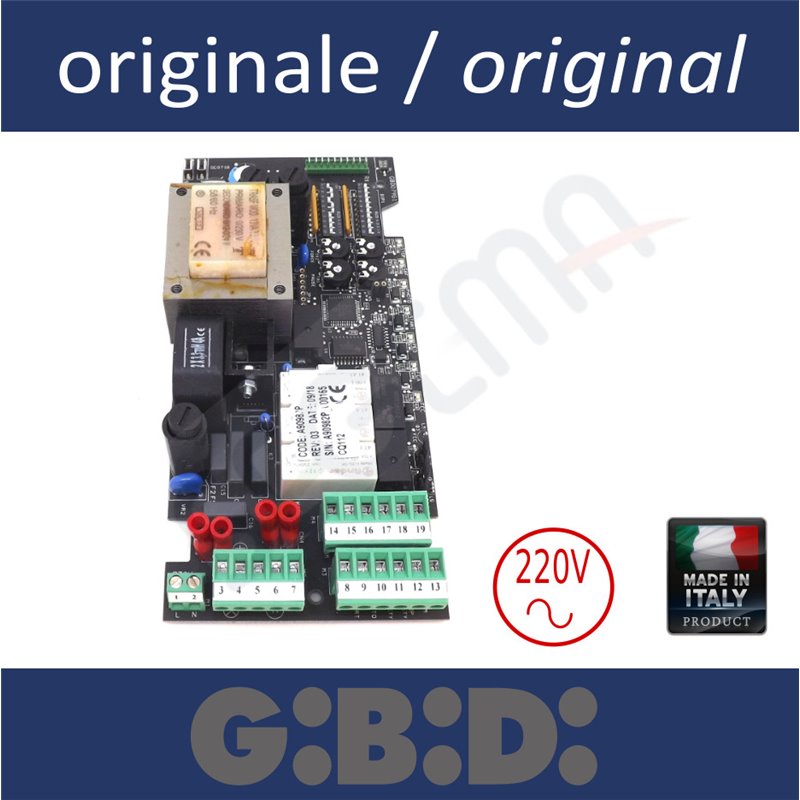

SC230E control unit for sliding gates operators PASS 1200-1800

Reference: A90983P

Condition: New product

New spare control unit for GIBIDI operators PASS 12-16, PASS 1200-1800 and new operators PASS with encoder.

More details

Delivered in 10/15 days

VIDEOS

How to replace the SC230 control board

Send to a friend

Send to a friend

SC230E control unit for sliding gates operators PASS 1200-1800

New spare control unit for GIBIDI operators PASS 12-16, PASS 1200-1800 and new operators PASS with encoder.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

The SC230E is the new GIBIDI control unit for the sliding gates operators PASS with encoder. The new generation of operators allows to avoid the installation of the second pair of photocells and a better control on the slowdown, the speed and the anti-crushing system of the operator PASS.

Being the PASS one of the most sold sliding gate operator of all time, GIBIDI has decided to male this control unit retro-compatible with the operator PASS and SL 230 V. To do this, you'll have to configure the control unit in a particular way. In order to facilitate this replacement, inside the package, SEGEMA has included short quick guide on the operations to do to install the new SC230E on the old systems. This product can be used as a spare control unit on the following operators:

PASS STAR
PASS REGO
PASS 12
PASS 16
PASS 1200
PASS 1800

In the old operators beneath the control unit there's another board, the limit switch board. In the new control unit, the limit switchs are on board of the control unit, therefore you'll also have to remove the limit switch board. We suggest to replace also the plastic support that is provided with the SC230E.

PAY ATTENTION, in some of the old control unit the position of the motor wirings is different from the current one. Remember to always check with the instruction and, in addition, compare the serigraphy of the two control units, before switching on the power supply.
